How Do Electric Cars Work?

Electric cars have come a long way in recent years, evolving from a niche market to a mainstream mode of transportation. With growing concerns over climate change and the environmental impact of fossil fuels, more and more people are turning to electric vehicles (EVs) as a cleaner, more sustainable alternative. However, many new EV owners are often curious about how these vehicles actually work, especially when it comes to charging.

In this guide, we’ll break down the essential components of electric cars, how they operate, and, most importantly, how the charging process works. Whether you’re a prospective electric car buyer or just someone interested in learning more about this innovative technology, understanding the charging process is key to fully appreciating the benefits and convenience of owning an electric vehicle.

What is an Electric Car?

Electric cars are vehicles that run entirely on electricity, powered by an electric motor instead of an internal combustion engine (ICE) that runs on gasoline or diesel. These cars utilize electric energy stored in rechargeable batteries to propel the vehicle, making them an environmentally friendly alternative to traditional gasoline-powered cars.

The Basics of Electric Cars

Unlike conventional vehicles that rely on burning fuel to create power, electric cars use electricity stored in large battery packs. These batteries supply power to the electric motor, which in turn drives the wheels of the car. The motor works through the principle of electromagnetism, where electric current passing through coils creates a magnetic field that moves the car.

Electric cars typically use lithium-ion batteries, the same type found in many portable devices like smartphones and laptops, due to their high energy density and efficiency. These batteries can be charged through a power source, either at home using a standard outlet or at dedicated public charging stations.

Types of Electric Cars

There are several types of electric vehicles, each offering a different driving experience and charging options:

Battery Electric Vehicles (BEVs): These are fully electric cars, relying solely on batteries for power. They have no gasoline engine and must be plugged in to recharge. BEVs are the most common type of electric car and offer zero tailpipe emissions, which makes them more eco-friendly.
Plug-in Hybrid Electric Vehicles (PHEVs): These vehicles combine a traditional internal combustion engine with an electric motor. The electric motor can be used for short trips, while the gasoline engine takes over for longer distances. PHEVs offer the flexibility of using either electric power or gasoline.
Hybrid Electric Vehicles (HEVs): Unlike PHEVs, these vehicles cannot be plugged in to charge. Instead, the gasoline engine and electric motor work together to optimize fuel efficiency. The battery is charged through regenerative braking and by the internal combustion engine.

How Electric Cars Differ from Gasoline Cars

The primary difference between electric cars and traditional gasoline vehicles is the way they generate power. Gasoline cars burn fuel inside an engine to create combustion, which powers the vehicle. In contrast, electric cars use an electric motor powered by energy stored in batteries, resulting in zero emissions at the tailpipe.

Electric cars also have fewer moving parts than gasoline vehicles. This means they require less maintenance, as there’s no need for oil changes, spark plugs, or exhaust systems. The simplicity of the design, along with the elimination of the need for gasoline, is part of what makes electric cars appealing to consumers looking for low-maintenance and cost-effective alternatives.

The Growing Popularity of Electric Cars

As concerns about environmental issues such as climate change and air pollution grow, the popularity of electric cars has surged. Governments around the world are offering incentives and subsidies to encourage the adoption of electric vehicles, helping to reduce the costs associated with purchasing and maintaining these cars.

With advancements in battery technology and increasing investment in charging infrastructure, electric cars are expected to continue their upward trajectory in popularity. As electric vehicle ranges increase and charging times decrease, more drivers will find electric cars a viable option for daily commuting and long-distance travel.

Key Components of an Electric Car

Electric cars are built around several essential components that work together to deliver a smooth, efficient, and environmentally friendly driving experience. Each part plays a crucial role in powering the vehicle, managing energy, and ensuring optimal performance.

Battery Pack

The battery pack is the heart of an electric car. It stores the electrical energy that powers the motor and other systems within the vehicle. Most modern electric vehicles use lithium-ion batteries due to their high energy density, long lifespan, and relatively low weight. Battery packs are made up of thousands of individual cells grouped into modules and then assembled into a larger battery unit.

The size of the battery pack, usually measured in kilowatt-hours (kWh), determines how far the car can travel on a single charge. Larger battery packs offer greater range but also add weight and cost to the vehicle. Managing battery health and efficiency is crucial for maintaining the performance and longevity of an electric car.

Electric Motor

The electric motor converts electrical energy from the battery into mechanical energy that turns the wheels. Unlike internal combustion engines, electric motors provide instant torque, allowing electric cars to accelerate quickly and smoothly. There are different types of electric motors used in vehicles, including AC induction motors and permanent magnet motors, each offering specific advantages in terms of efficiency and performance.

Electric motors are highly efficient, often achieving over 90% energy conversion rates, compared to around 20-30% for traditional gasoline engines. This efficiency translates to better performance and lower energy consumption.

Inverter

The inverter is responsible for converting the direct current (DC) electricity stored in the battery into alternating current (AC) electricity needed by the electric motor. It also controls the motor speed and torque by adjusting the frequency and amplitude of the AC power.

In addition to powering the motor, the inverter manages regenerative braking by converting the energy recovered during braking back into usable electricity and sending it to the battery. This dual functionality makes the inverter a key player in the efficiency and energy management of an electric car.

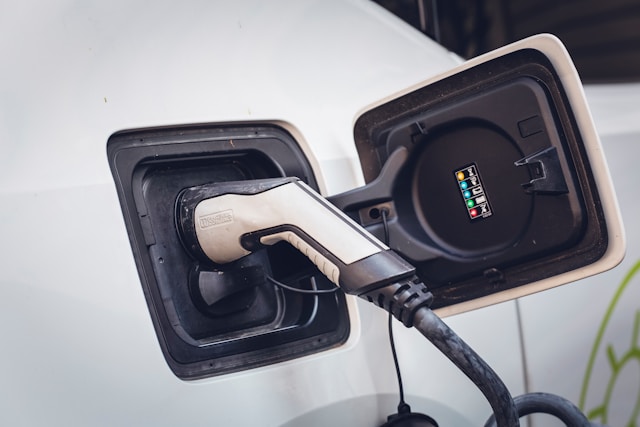

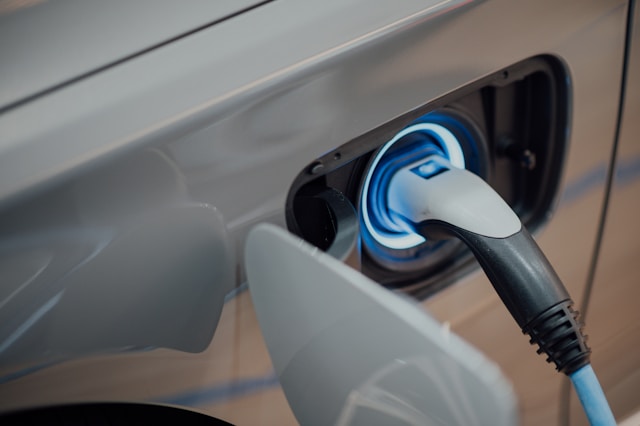

Charging Port

The charging port is the interface through which the vehicle connects to an external power supply for recharging the battery. Depending on the car and the charger type, this port can accept different levels of charging power, from slow home charging setups to rapid public fast chargers.

Most electric cars come equipped with a standard charging port that can be adapted for various connector types, such as CCS (Combined Charging System), CHAdeMO, or Tesla’s proprietary connector. The charging speed depends on both the capacity of the vehicle’s onboard charger and the power of the external charger.

Onboard Charger

The onboard charger manages the flow of electricity from the charging port to the battery pack. It ensures that the battery is charged safely and efficiently, converting the AC power from the wall outlet or charging station into the DC power that the battery stores.

The onboard charger also regulates voltage and current to protect the battery from overcharging or overheating, extending the battery’s lifespan. Some electric vehicles are equipped with higher-capacity onboard chargers that allow for faster charging when connected to compatible charging stations.

Thermal Management System

Electric vehicles rely on thermal management systems to maintain optimal temperatures for the battery, motor, and other components. Effective temperature regulation is vital because extreme heat or cold can reduce battery efficiency, shorten lifespan, and impair overall vehicle performance.

Most thermal management systems use liquid cooling or heating circuits to stabilize temperatures, ensuring that the electric car performs reliably across different environmental conditions.

Transmission (or Drive System)

Unlike traditional cars that often have multi-speed transmissions, most electric vehicles use a single-speed transmission because electric motors can operate efficiently across a wide range of speeds. This simplicity not only reduces mechanical complexity but also contributes to a smoother and quieter driving experience.

The transmission directs the motor’s power to the wheels, and in some designs, especially with all-wheel-drive EVs, separate motors may power the front and rear wheels independently, improving traction and handling.

Each of these components works in harmony to make electric vehicles efficient, reliable, and increasingly popular choices for modern transportation. Understanding these systems helps demystify how electric cars operate and highlights the innovative engineering behind their design.

How Does the Electric Motor Power the Car?

The electric motor is the core component that enables an electric vehicle (EV) to move. Unlike traditional internal combustion engines, which rely on the combustion of fuel to create mechanical energy, an electric motor uses electrical energy stored in the car’s battery to produce movement.

The Basics of Electric Motor Operation

Electric motors operate based on the principles of electromagnetism. When electric current flows through a coil of wire, it creates a magnetic field. The magnetic field generated by the current interacts with permanent magnets or another magnetic field within the motor, resulting in rotational motion. This motion is what drives the wheels of the vehicle.

In most electric vehicles, the motor is a three-phase AC (alternating current) motor. When current flows through the coils of the motor, it creates a rotating magnetic field, which causes the rotor (the part of the motor that rotates) to turn. This rotational movement is transferred through a single-speed gearbox or transmission to the wheels, making the car move forward or backward.

Instant Torque and Smooth Acceleration

One of the most significant advantages of electric motors is their ability to deliver instant torque. Torque refers to the rotational force that allows the car to accelerate. Unlike internal combustion engines, which need to build up RPM (revolutions per minute) to reach peak torque, electric motors provide maximum torque from the moment you press the accelerator pedal.

This means that electric cars can accelerate smoothly and quickly, without the lag or hesitation often associated with gasoline-powered vehicles. Whether it’s starting from a complete stop or overtaking another vehicle, the instantaneous response from an electric motor is one of the reasons electric vehicles offer such a satisfying driving experience.

Motor Control and Regenerative Braking

The power and speed of an electric motor are managed by an onboard inverter and controller, which adjust the flow of electricity to the motor. The controller determines the motor’s speed and torque by adjusting the frequency and amplitude of the current passing through the motor’s coils. This allows the car’s computer systems to control how fast the motor spins, and how much power it delivers to the wheels.

Electric motors also offer the benefit of regenerative braking, a system that allows the motor to reverse its function and act as a generator. When the driver applies the brakes, the motor switches to “reverse mode” and begins to slow the car down by converting the vehicle’s kinetic energy back into electrical energy. This energy is sent back into the battery for storage and can be used later to power the vehicle. Regenerative braking helps extend the range of electric cars and reduces wear on the conventional braking system.

Efficiency and Energy Conversion

Electric motors are far more efficient than internal combustion engines. Traditional gasoline engines are only about 20-30% efficient at converting fuel energy into usable power to drive the wheels. The rest is lost as heat. In contrast, electric motors can convert over 90% of the electrical energy into mechanical energy. This high efficiency means that electric vehicles use energy more effectively, translating to better mileage and lower operating costs.

Furthermore, since electric motors do not need to burn fuel, they produce zero emissions at the tailpipe, making them a cleaner and more environmentally friendly option compared to gasoline-powered vehicles.

The Role of the Powertrain

In an electric vehicle, the powertrain is the system that links the motor to the wheels. Unlike traditional vehicles that rely on multi-speed transmissions, most electric cars use a single-speed transmission. This is because electric motors can provide a wide range of speeds without the need for gears to adjust RPM.

The single-speed transmission ensures that the electric motor delivers power continuously, without the need for shifting gears or worrying about engine speed. The result is a smoother, quieter ride with fewer mechanical components that need maintenance.

Motor Types Used in Electric Cars

There are different types of electric motors used in electric cars, including:

AC Induction Motors: Commonly used in many electric cars, AC induction motors are known for their robustness, simplicity, and efficiency. They don’t require rare earth materials and are capable of performing well in a wide range of driving conditions.
Permanent Magnet Synchronous Motors (PMSMs): These motors use permanent magnets to create the magnetic field needed for rotation, making them more efficient than AC induction motors, especially at higher speeds. However, they can be more expensive due to the use of rare earth materials in the magnets.
Brushless DC Motors (BLDC): These motors are also used in some electric vehicles and offer high efficiency with low maintenance needs. They use electronic controllers to regulate the current and ensure smooth operation.

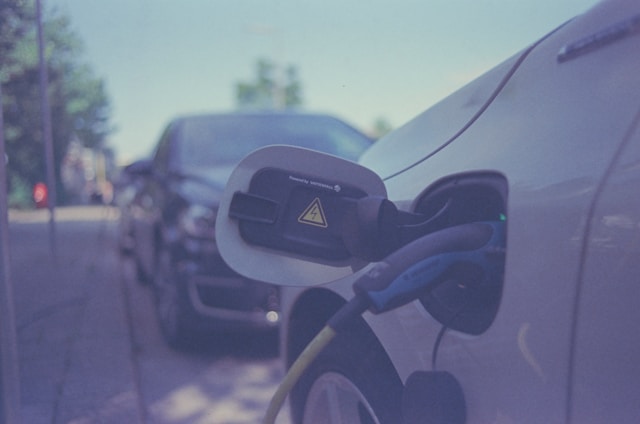

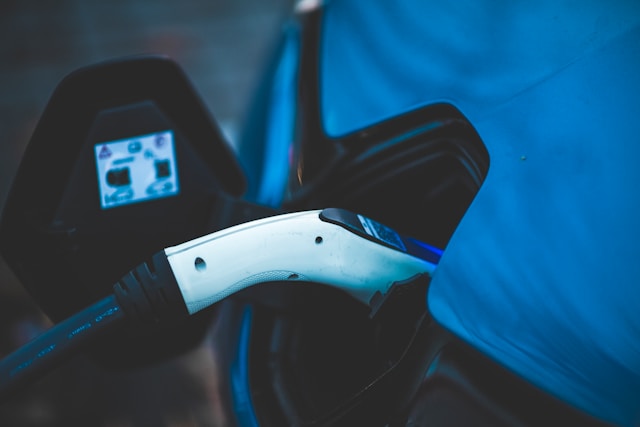

The Charging Process

Charging an electric vehicle (EV) is a key part of owning and operating one. Unlike gasoline cars, which require regular refueling at a gas station, electric vehicles need to be charged through an external power source. The charging process is essential to ensure that the battery is sufficiently powered for daily use, and understanding how it works helps EV owners manage their energy needs effectively.

Charging at Home

One of the most convenient ways to charge an electric car is at home, typically using a Level 1 or Level 2 charger.

Level 1 Charging

Level 1 charging involves using a standard 120-volt household outlet, which is the same type of outlet used to power appliances like lamps or televisions. This charging method does not require any special equipment beyond the charging cable that comes with most EVs. While Level 1 charging is simple and convenient, it is also the slowest method. It typically adds about 2-5 miles of range per hour of charging, making it suitable for drivers who have a short commute or who can leave their car plugged in overnight.

Level 2 Charging

Level 2 charging requires a 240-volt outlet, which is the same type used by larger household appliances like dryers or ovens. This method is faster than Level 1 charging, providing anywhere from 10 to 60 miles of range per hour, depending on the power output of the charger and the car’s battery capacity. Most EV owners opt for a Level 2 home charging station, as it can fully charge a vehicle overnight, providing a full battery by the time the driver is ready to use it again.

Installing a Level 2 charger requires a professional electrician to ensure proper wiring and electrical safety, but once installed, it offers a significant improvement in charging speed.

Public Charging Stations

In addition to home charging, many electric vehicle owners rely on public charging stations for longer trips or when they do not have access to home charging. Public charging stations vary in terms of charging speed and accessibility, and they are typically found in parking lots, along highways, and in urban centers.

Level 2 Charging Stations

Public Level 2 chargers are similar to home-based Level 2 chargers but are typically faster due to higher power outputs. They can add 10-20 miles of range per hour of charging. Some public Level 2 stations require a membership card or payment via apps or credit cards, while others may be free to use.

DC Fast Charging (Level 3)

DC Fast Charging (also known as Level 3 charging) is the fastest charging option available for electric vehicles. These stations provide a high-voltage direct current (DC) to rapidly charge the battery. A DC fast charger can typically provide 60-80% of a vehicle’s battery capacity in around 30 minutes, making them ideal for long-distance travel or for drivers who need a quick top-up during the day. However, not all EVs are compatible with DC fast chargers, so it’s essential to ensure that your car supports this charging type.

DC fast chargers are commonly found along major highways and in urban locations to support longer journeys. They tend to be more expensive to use than Level 2 chargers, with pricing based on either time spent charging or the amount of electricity used.

Charging Time and Battery Range

The time it takes to charge an electric vehicle depends on several factors, including the charging method, the capacity of the vehicle’s battery, and the state of charge when charging begins. For example, if an EV has a larger battery (e.g., 100 kWh), it will take longer to charge compared to a car with a smaller battery (e.g., 30 kWh).

At home, using a Level 1 charger, it may take anywhere from 24-48 hours to fully charge an electric vehicle, depending on its battery size. With a Level 2 charger, the same vehicle may take anywhere from 4-10 hours for a full charge. DC fast chargers, on the other hand, can charge an EV to 80% in as little as 30 minutes, making them ideal for drivers in need of a quick charge.

Understanding your vehicle’s range (how far it can travel on a full charge) and planning charging times around your daily routines is crucial to managing the charging process efficiently. Most electric vehicles provide an estimated range, and apps or onboard systems can help track charging needs.

Charging Infrastructure and Networks

With the rise of electric vehicle adoption, public charging infrastructure has expanded significantly. Networks like Tesla Supercharger, ChargePoint, and Electrify America are among the largest and most widely used charging providers. These networks offer apps and websites that allow users to locate charging stations, check the availability of chargers, and pay for charging sessions.

Some networks also allow users to plan trips with charging stations mapped along the route, ensuring that drivers never run out of battery while traveling long distances. Many EV manufacturers also provide their customers with access to charging networks, often including a certain amount of free or discounted charging to incentivize the adoption of electric vehicles.

Home Charging vs. Public Charging

For many electric vehicle owners, home charging is the most convenient and cost-effective option. Since EVs can often be charged overnight while the car is not in use, drivers wake up each morning with a fully charged battery, ready for the day ahead. Public charging, on the other hand, is useful for topping off the battery during long trips or when home charging is not available.

Though public charging stations can be more expensive, they are essential for EVs that need to travel beyond the range of their home charging setup. The growing availability of charging stations is making it easier for drivers to rely on public infrastructure, reducing the concern of “range anxiety,” or the fear of running out of battery power.

Enjoyed this guide of how do electric cars work? Then be sure to check out our other EV guides.
